Facilities List

CNC MILLING DEPARTMENT

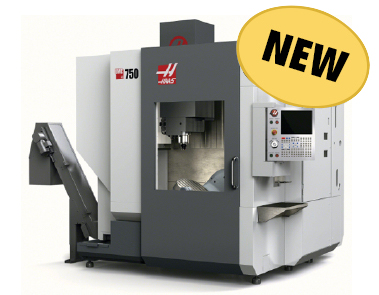

Haas UMC-750

(2) Haas UMC-750 5-Axis Universal Machining Center

  • Travels X (30"), Y( 20"), Z( 20")
  • 30-hp (22.4 kw) Vector Drive, 8100 RPM, Inline Direct-Drive
  • 40+1 Side Mount Tool Changer
  • 5 Axis

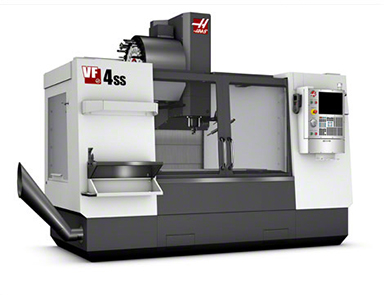

Haas VF-4SS

(2) Haas VF-4SS Vertical Super Speed Machining Center

  • Travels X (50”), Y (20”), Z (25”)
  • 30-hp (15kw) 12,000 RPM, Inline Direct Drive
  • High Speed 24+1 Side Mount Tool Changer
  • 4th Axis

Hass VF-2SS

(2) Haas VF-2SS

  • Travels X (30”), Y (16”), Z (24”)
  • 30-hp (15kw) 12,000 RPM, Dual Drive (Y-Delta)
  • 24+1 High Speed Side Mount Tool Changer
  • 4th Axis

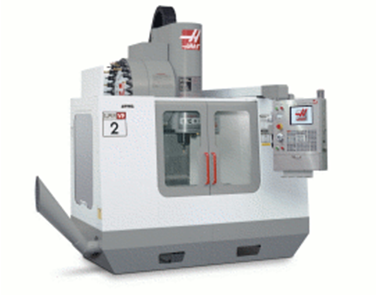

Haas Super VF-2

(2) Haas Super VF-2

  • Travels X (30”), Y (16”), Z (24”)
  • 30-hp (15kw) 12,000 RPM
  • 24+1 High Speed Side Mount Tool Changer
  • 4th Axis

Haas VF-0 Vertical Machining Center

Haas VF-0 Vertical Machining Center

  • Travels X (20”), Y (16”), Z (20”)
  • Spindle Speed – 7,500 RPM max.
  • 160mm (6.3”) True 4th Axis Rotary Table
  • 20-Position Automatic Tool Turret
  • 20 HP, Direct Drive



CNC TURNING DEPARTMENT

DN Solutions PUMA DNT2600

DN Solutions Lynx 2100A

  • Spindle Speed – 6,000 RPM
  • 6” Hydraulic Chuck
  • 13.78” Maximum Turning Diameter
  • 13.00” Maximum Turning Length

DN Solutions PUMA DNT2600

DN Solutions PUMA DNT2600

  • 33hp/542-lb High Torque Spindle
  • Spindle Speed – 3,500 RPM
  • 10” Hydraulic Chuck
  • 18.1” Turning Diameter
  • 25.9” Maximum Turning Length

Hardinge Elite 51 MS

Hardinge Elite 8/51 MS

  • 15-HP/11-kW Spindle Drive System
  • Spindle Speed – 6,000 RPM
  • 8” Hydraulic Chuck
  • 2” Diameter Bar Capacity
  • LNS Quick Six 6FT Bar Feeder

Hardinge VMC610XP³

Hardinge Conquest T42 CNC Lathe

  • #3 MT Tail Stock
  • 1 5/8” Bar Capacity, 16C Collet Spindle
  • 10 HP, 5,000 RPM Spindle Drive
  • 10” Hydraulic Chuck
  • Hardinge/GE Fanuc 18-T Control with Conversational Programming/Color LCD
  • Hardinge Hydromatic Bar Feeder

Hardinge Cobra 42 Lathe

Hardinge Cobra 42 Lathe

  • 1 5/8” Bar Capacity, 16 Collet Spindle
  • 10 HP, 5,000 RPM Spindle Drive
  • 6” Pneumatic Chuck
  • 14” Turning Distance (max.)
  • Hardinge/GE Fanuc 21-T Control

Okuma & Howa Model HL-35(b)

Okuma & Howa Model HL-35(b)

  • Spindle Speed – 3,500 RPM (20HP)
  • 12” Hydraulic Chuck
  • 3.150DIA Bar Capacity
  • FANUC 18i Control
  • Programmable Tailstock




EDM DEPARTMENT

CUT 20 P Wire EDM

GF AgieCharmilles – CUT 20 P Wire EDM

  • IPG-V Generator utilizes Swiss design and technology and delivers a finer spark gap for better part geometry and surface finish
  • The X and Y axis incorporates linear scales and encoders to ensure greater positioning accuracy and repeatability.
  • Low-maintenance, reliable automatic wire threading system boosts autonomy and reduces operating cost.



MANUAL MACHINES

Alliant with .0005 Digital Readout
• 15" x 32" Table Travel
• 2 Horse Power

Hardinge Chucking Lathe with Automatic Threading Unit

Kerry 17-55 Engine Lathe

GRINDING AREA

Millport Series II Precision Surface Grinder

SUPPORT EQUIPMENT & SERVICES

Trinco Dry Blast 24” x 48” Workpiece Size Maximum Sand Blaster

W.F. Wells 18” Diameter Maximum Cutoff Saw

Band Saw 16” Workpiece Maximum

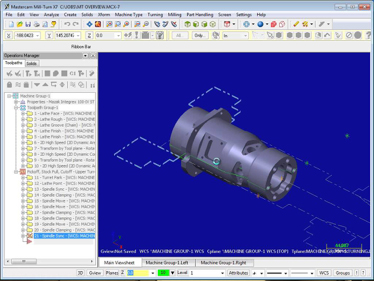

ENGINEERING

Engineering

Lee Tool’s engineering staff is accessible to help develop the best and most efficient design possible for your products, whether you provide us with your blueprints or we reverse engineer components to meet your requirements.

SAMPLING OF SPECIAL PROCESSES PROVIDED BY APPROVED SOURCES

- Anodize
- Braze
- E.D.M.
- FPI / MPI
- Heat Treat
- Various Plating
- Welding
- X Ray
